Application Layout

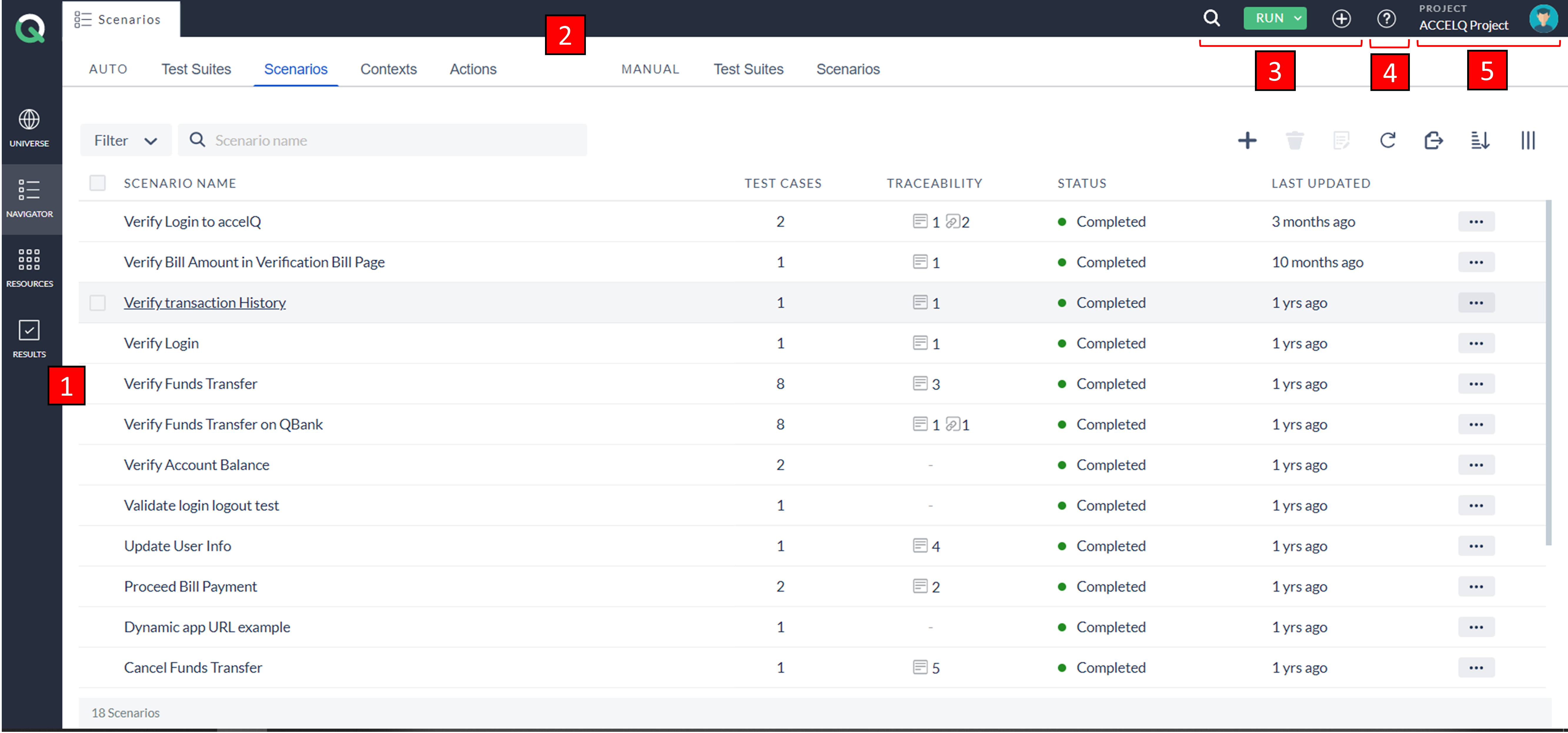

The ACCELQ application UI layout is divided into 5 parts:

1. Side Navigation Bar
2. Tabs Area
3. Global Toolbar Area
4. Help Center
5. Project Config Area & User Profile

Side Navigation bar
The Side Navigation bar groups the application into logical sections and make it easy for the user to navigate from one section to another easily and effectively. The Navigation bar consists of Universe, Navigator, Resources, and Results.

Universe Universe is the blueprint of the Application Under Test (AUT), which the current ACCELQ Project maintains test assets for. This is formed automatically as part of your test development, and serves several features for ease of test development, maintenance, and analysis. Navigator Navigator is a repository of all your test assets laid out in a grid format. You can find your created Test Suites, Scenarios, Context,s and Actions under the Navigator section. Resources Resources section consists of all the additional resources that you manage as part of supporting your test assets. It includes Global Properties, Run Properties, Data Lists, Data Types, User Extensions, Local Agents, Driver Profiles etc. Results Results section stores all the test results in a central place, it also stores all the CI Jobs and planned Scheduled Runs.

Tabs area
The ACCELQ application is architected and designed to open multiple test assets simultaneously. We understand that working to get the best test scenarios defined will need you to work and refer to multiple test assets at any given time and having the ability to open these assets in a tab helps in navigating between them easily.

There are 2 kinds of tabs in the ACCELQ Application. The first tab is a fixed tab and cannot be removed, the content of this fixed tab depends on the section you are in. For example, when you click on the Navigator section from the sidebar the fixed tab will show the Navigator grid.

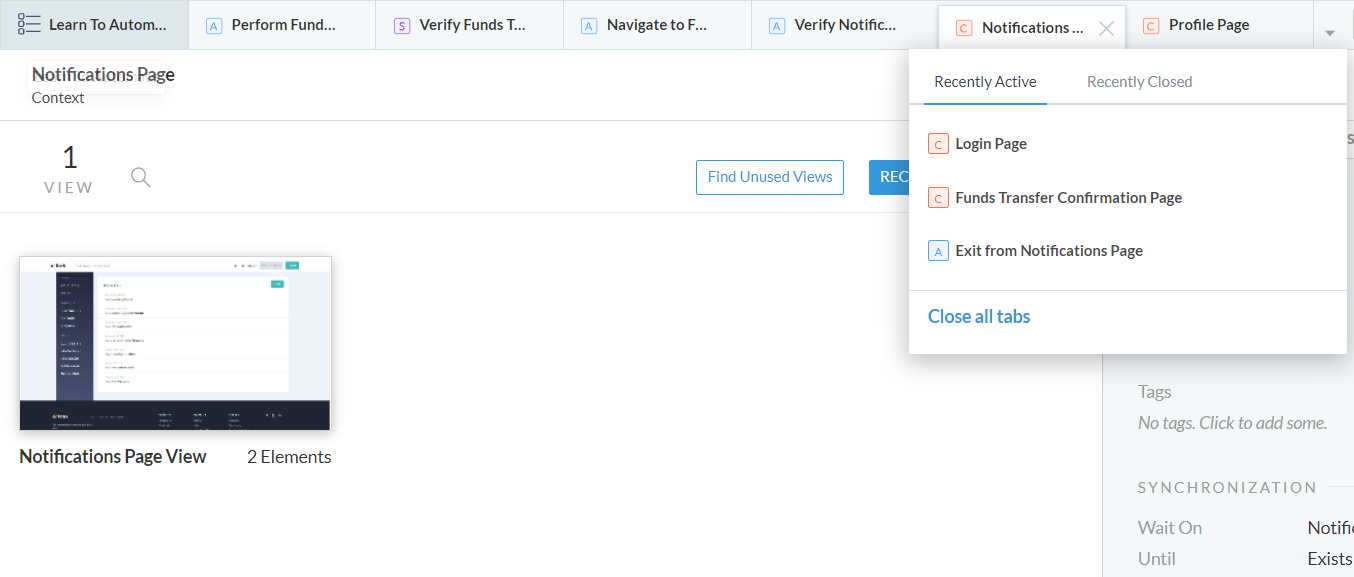

The other tabs that get opened when you click on the asset name can be closed if needed. In general, depending on your screen resolution and size you should be able to see 5-6 tabs on the tab area, the overflowing tabs go under the list of the tab which can be accessed from the arrow icon next to the last tab.

Global Toolbar area
The global toolbar area consists of actions that can be needed at any point in time and should have easy access no matter where you are in the application. The toolbar consists of Global Search, New Entity creation, Activity Log, and Run button.

• Global Search
  Global Search is an extremely powerful feature in the ACCELQ application which helps you to quickly jump to your desired asset. You can search for any test asset. To make the finding easier the search result drop-down is categorized as per the asset type.
• Run button
  A global Run Button enables you to execute a Scenario or a Test Suite. You can also schedule a CI job or schedule a Run from here.
• New Entity Creation
  New asset creation is just a click away. No matter where you are in the application, click on the New Entity icon and select the asset type you would like to create.

Help Center

The help center in ACCELQ is context-aware and will show you the help articles based on which location/ section/ asset you are currently viewing. Help Center is much more than just a repository of help articles, you will find a lot of very interesting content under the help center.

• Search knowledge base
  To search for a help article just type the keywords on the search box at the top of the help center.


• Learning Resources
  Learning Resources is an extremely intuitive and powerful place for you to check out the Product Guide, get articles that help you Learn to Automate, explore the different commands in Action Logic, etc.


• Other Options
  The Help Center also offers other options like taking a tour of the current page, a guide to help you create your first Scenario, and getting insights on the Best Practices and Tips.


• Support
  There will be times when you would like to directly reach out to us and talk to us regarding the issue you are facing with the ACCELQ application, and we want you to be able to do that straight from the application.


• Share Ideas
  We know you would like to share your thoughts and ideas on how we can make ACCELQ better and want to make the process of sharing your thoughts and ideas as easy as possible.


• Current version & What’s New
  Here you can see the current version of the application and the “What’s New” section gives you the option of exploring the exciting new features of the current Release.

Project Config Area & User Profile

Project Information
The Project Information section consists of Project Information like the current Project Name, Role, Test Asset View, Project Activity, Integrations, Version Control, and other such project-related information including the list of all assigned projects.

Test Asset View

ACCELQ supports both manual and automated testing under one platform. Both these test assets are managed side by side bringing the unification and fluidity that is extremely important in an agile environment.
When you are assigned a Unified subscription, you may choose to select a Test Asset View for each project depending on what your main focus area is. If for a particular project, you are primarily functioning in manual testing mode, you can set up a Manual View. Similarly, you can set up an Automation-only View.
To change your current Test Asset View, click on the text below the ‘Test Asset View’ title that reads the name of the current view.

In the resulting popover, select the desired view. This will become your default view every time you log in to this project and each project may have a different view preference.
When you are working in Manual View, all the automation-specific entities are hidden in the project. Similarly, when operating in the Automation View, manual assets are hidden. When you are working in Unified View, explicit marking is displayed differentiating Manual and Automation assets.

Project Settings
The Project Settings consists of all the administration-level settings. You will be able to access these settings depending on the role you have been assigned. Only Project Admin and Tenant Admin have access to edit/modify these settings.

You can also manage project-related settings, like Custom fields, App Environments, User Setup, etc. You can set up your integration channel for defects and Requirements. You can also manage Projects and Users.

Project Activity
The project activity log lists the project-level activity in chronological order. Detailed change history can be tracked by opening the test asset, while this log shows high-level updates on entities.

User Profile
User Account card shows the Name / ID of the user and the type of license that is assigned. It also shows details related to Auth properties like API Key, Project Code, and Tenant Code.
Options to Edit Profile, Change Password, and Sign out are also available on this card.

Work Area
This is the area where most of the work will happen and depending on which section in the application and/or asset tab you are in the work area will change accordingly.
